Grow light stand build

Infinityheat

Infinityheat

This is a simple light stand fixture I've been putting together.


I used 10 pieces of 2 foot square bar and 7 pieces of 4 foot square bar, 3/4x3/4" 11ga


And i used 4 feet of 1' sqaure bar(16ga) cut into four pieces.




The fixture is made up of 2 frames, a back stand and then two front legs

the first frame is made up of two 4' and two 2'

its easiest to lay the 2' bars on top, but when all put together itll be flipped



The frames are pretty simple. just tac weld it all then weld it all up

the next frame is the exact same but with two more 2' bars each 1' from the sides






I'll update more soon.
Thanks for looking
Gavin

The next step is making the back stand. Half of the stand will also become the back legs.
I put this together with three 4' bars and two 2'.

This first part is to connect all the 4' bars this is the basic frame of the stand.

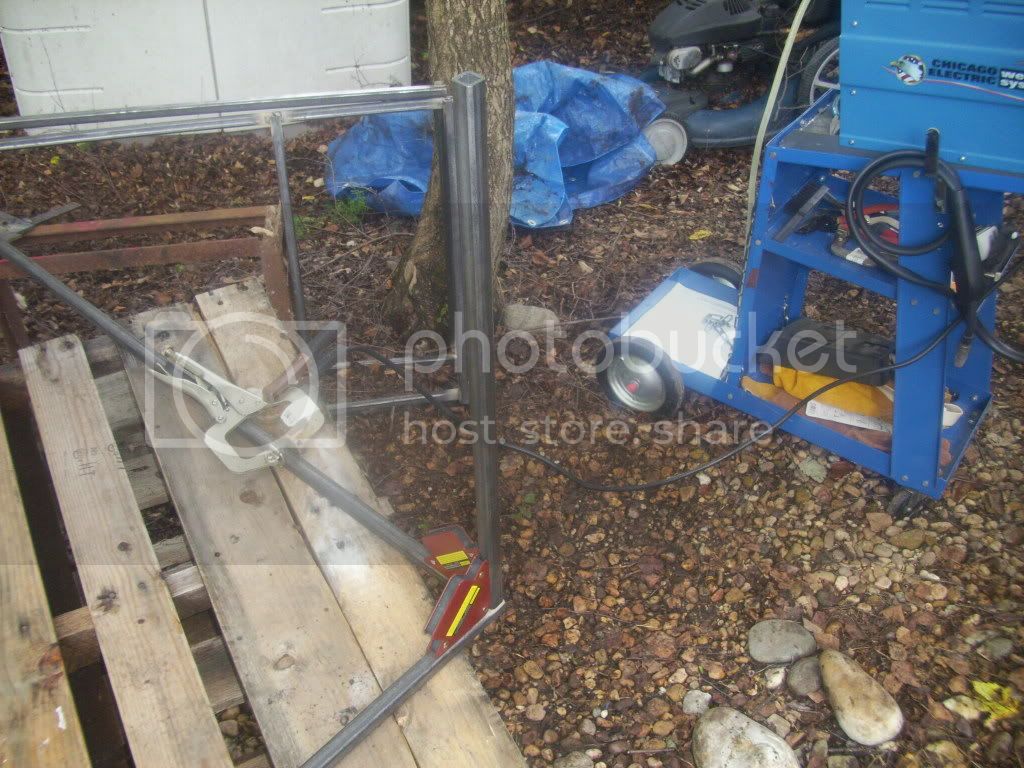

The next part was alittle tricker. i put the 2' bars on the corners. A helping hand or some magnets make this alot easier.


After that all the main parts are together. 2 frames, and a back.

So my goal was to have the frames come on at the 2' mark, but after measuring i decided i wanted this to be a bit taller, and not so low so i wouldnt have to bend over when messing with my plants. (for a young dude i have an 80 year olds back)

So i decided id add a foot to each leg(which i now wish i had done before welding everything together:p) And iwanted to make it alittle nicer so i went up to 1" bar
each cut into a one foot length.

I started with the easy part and just took the 2' 3/4" legs that havent been welded and set them up

because the bar was 16ga(just ran to home depot to get it. didnt feel like waiting a week for the better stuff to come in) i put in some little metal scraps between the two bars to hold it in place
tac. and weld around.



After i finished i just ground it to look nice
btw the machine i used as just some little cheap anyone can weld machine(except you have to be an expert to know how to fix all the problems which happens about every 5 minutes) it put out welds no where near as good as a quality machine i normally use.

the next part was real hard, considering the back as larger than the makeshift pallet work table.
pretty much just a bunch manuvering to get to the right spot.




Thanks for looking. ill update more in a few days with the assembly.

Gavin

Been busy for the last few days but this should be the second to last update

the next thing i did was to put the 2ft legs on the top frame(frame without middle bars)
forgot to take pictures but its pretty simple anyways

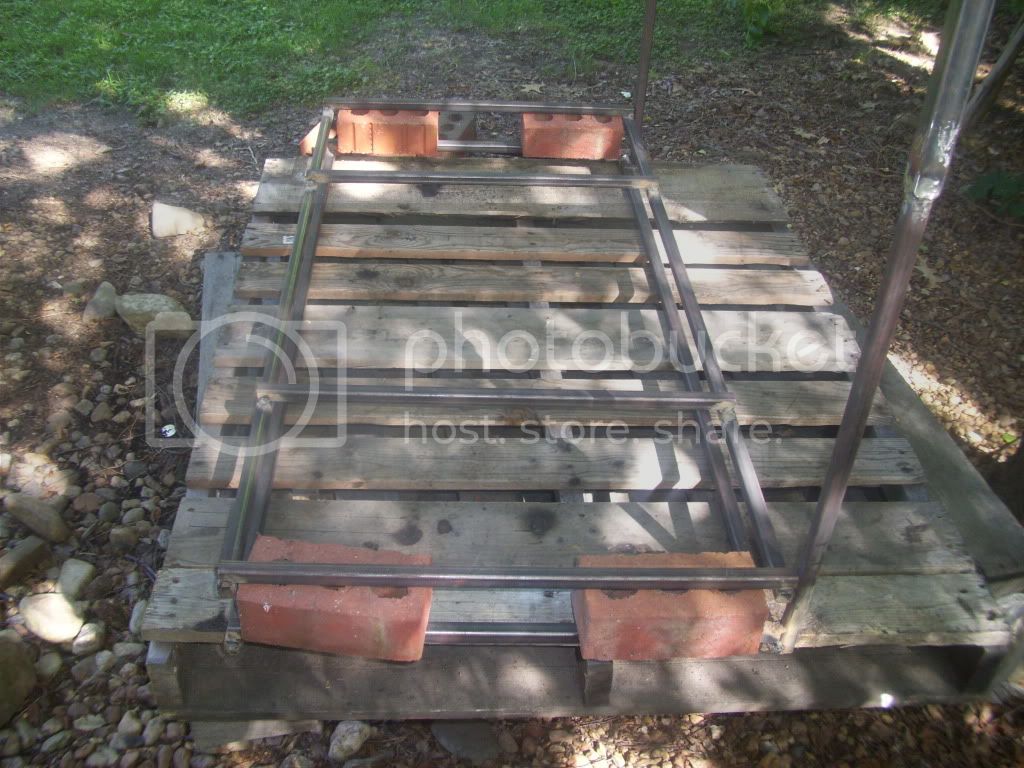

next i welded the second frame to the bars. Put bricks all around as it turned out they were the perfect hight








This next part was by far the hardest. And in the end it seems it would of been easyer to weld the 4' feet onto the frames without the top bars



Pretty much just tried putting it upside down and just did all i could to align it right and weld



ta da

almost done

with have the rest up this weekend

(its all done, just getting finishing touches)

Thanks for looking

Gavin

Sorry guys! been away for a while. i could of swore i posted the rest.


Prettu much i put 2 hook on each side to accomidate for 2 4' 4 bulb lights (one hook in the middle would work aswell for one 8 bulb. But with multiple lights i can raise and lower different lights)

and gave it a primer coat of paint and then a normal coat. i picked orange because it goes with my quantum badboy

heres it all done. (minus a light)
